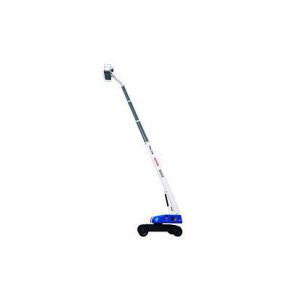

GKH40 Self-propelled Aerial Work Platform

Name: GKH40 Selfpropelled Aerial Work Platform
Brand: XCMG
Price: 1 USD

Place of Origin : China

Brand Name : XCMG

Model Number : GKH40

Certification : ISO

Price : negotiate

Packaging Details : Ro-Ro

Delivery Time : 30-50 days

Payment Terms : 30% deposit, balance before shipment

Supply Ability : 10000pcs/year

MOQ : 1pc

Contact Now

GKH40 Self-propelled Aerial Work Platform

Feature

Maneuverability
• 4 wheel drive and axle expansion ensure good stability, which is suitable for various work environments.
• 360° successive rotation

Maintenance
• It adopts America Cummins engine, featuring strong power, energy-saving and environmental care.
• The wing type engine hood and auxiliary pneumatic open mode is convenient for repair service.

Long life
• Simple and rugged structure, and steel housing, more suitable to work under tough conditions like shipyard.
• The ergonomically designed control panel and optimized button allocation feature comfortable operation.
• The 180° rotation platform can maximally expand the work range.
• The advanced octagon arm support improves the rigidity.
• Solid tyre.
• The galvanizing treatment for the key parts features anti-corrosion.
• The design of internally installed cables is superior to the commonly used outward design.

Parameter

Items	Unit	Parameters
Total length	mm	14300
Total width	mm	2490/3390
Total height	mm	3220
Axle base	mm	3600
Rated work height	m	40
Max. platform height	m	38.3
Max.work range	m	19
Arm luffing range	°	-12～+80
Bent arm luffing range	°	-65～+70
Arm luffing time	s	60
Arm contraction time	s	90
Max.rotation speed	r/min	0.8
Max.tail swing	mm	1400
Platform size	mm	1800×900×1150
Platform rotation range	°	180
Turntable rotation radius	mm	2650
Total weight under travel condition	kg	18700
Rated load	kg	150
Max. load	kg	450
Max.travel speed	km/h	4.8
Min. turning radius	m	7
Min.ground clearance	mm	260
Max. gradeability	%	40
Engine model		B3.3 Tier3
Rated engine power	kW/(r/min)	63/(2600)
Solid tyre		12.00-20/8.5

The specification is subject to change without notice.
